HEMORRHOID ABLATION SYSTEM

Hemorrhoid Ablation System

Mechanism of action

High-frequency current is delivered through the electrode into tissue, generating thermal energy that can produce coagulation, cauterization or ablation for therapeutic effect. Output intensity and duration can be adjusted according to tissue impedance to support controlled treatment. High-temperature heating at the electrode tip acts on the target tissue, producing necrosis, coagulation and carbonization in the tissue surrounding the electrode.

Indications

Internal hemorrhoids, the internal component of mixed hemorrhoids and varicose external hemorrhoids.

Procedure steps

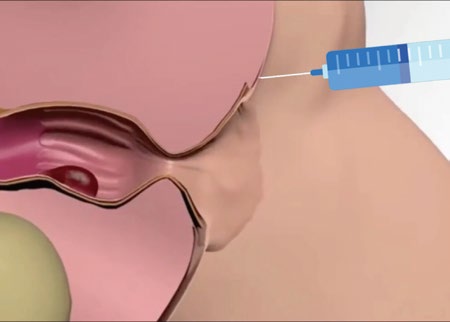

Procedure step 1 — 01Inject local anesthetic into the fat of the ischiorectal fossa around the external anal sphincter outside the hemorrhoidal cushion.

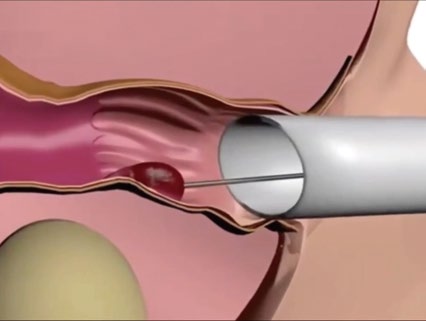

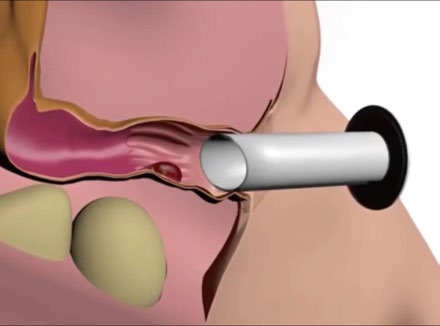

Procedure step 2 — 02Insert an anoscope and inject tumescence-separation solution at the base of the hemorrhoid to separate the vascular and muscular layers.

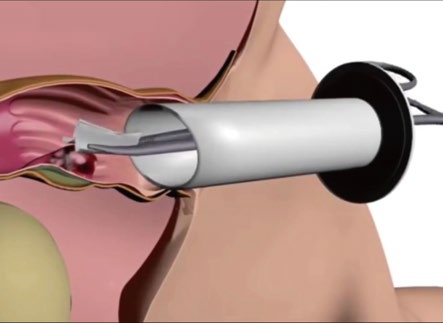

Procedure step 3 — 03Insert the ablation-electrode tip into the hemorrhoid, activate RF energy and close the hemorrhoidal vessels.

Procedure step 4 — 04During the procedure, hemorrhoidal proteins denature and contract immediately; cool the treatment site with moist gauze.

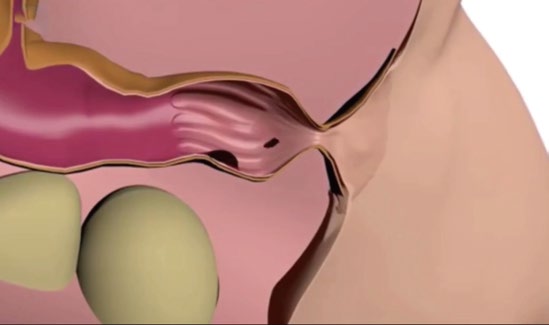

Procedure step 5 — 05Over 3–14 days after the procedure, the hemorrhoid further contracts, is absorbed and resolves.

◎ Mild pain, limited bleeding and rapid effect　　◎ Fast recovery and low recurrence rate　　◎ Preserves anal-cushion function

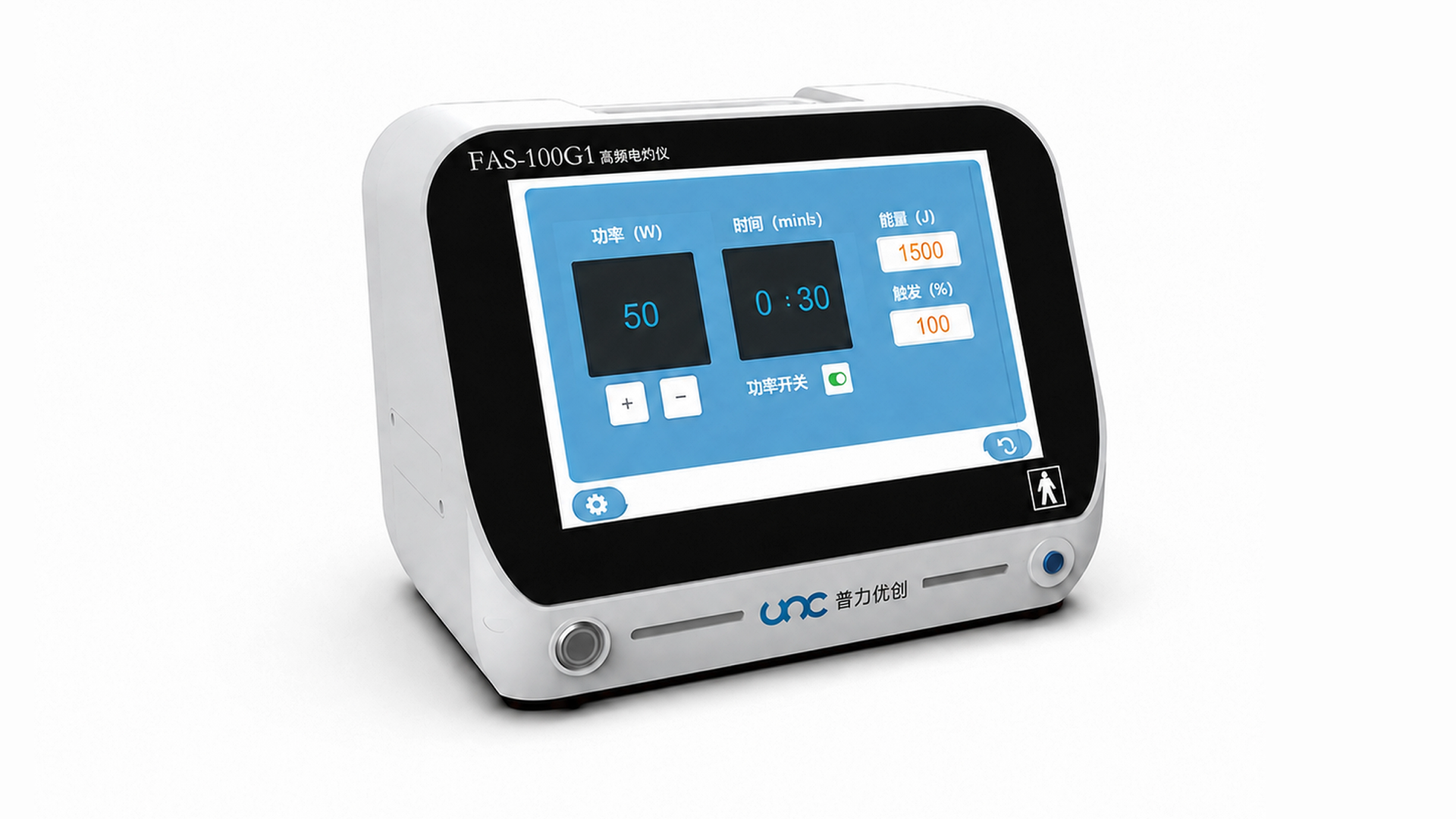

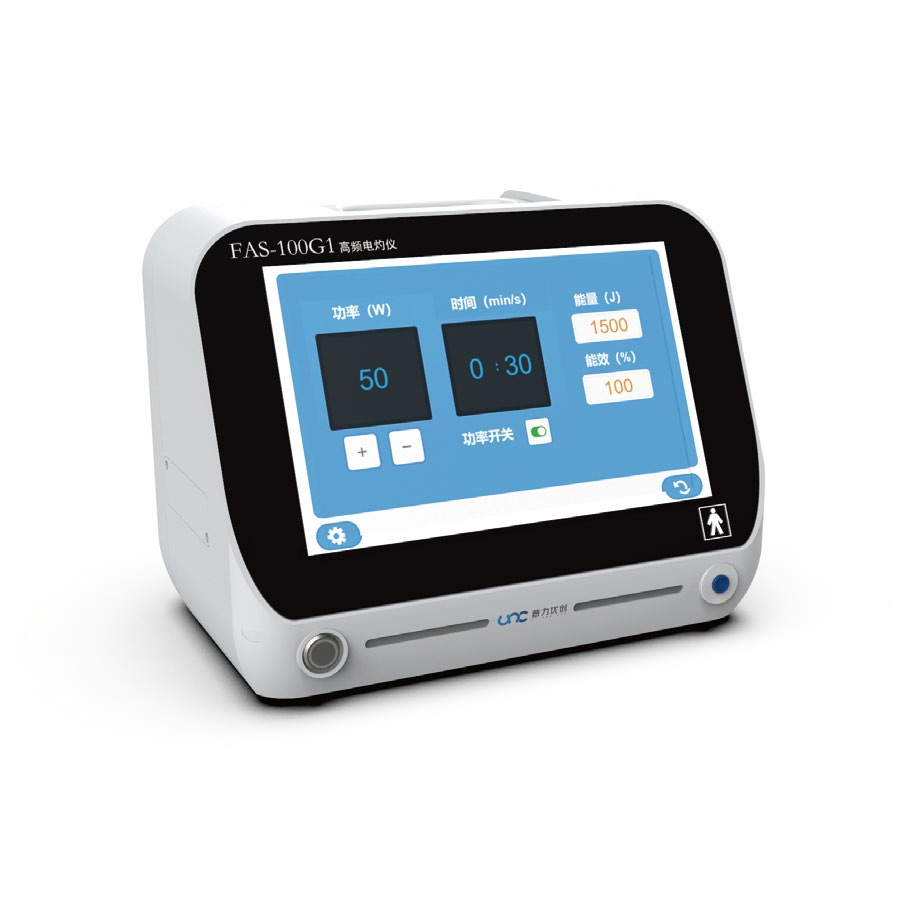

High-frequency Electrosurgical Unit ▶

Over-treatment prevention systemAutomatically pauses at the end of each treatment cycle to help prevent tissue injury; duration is adjustable.
User-centered designCompact system supplied with a portable carrying case for off-site consultation procedures.
Intelligent safety-lock systemCombined software and hardware rapid cut-off with controlled output measures for enhanced safety.

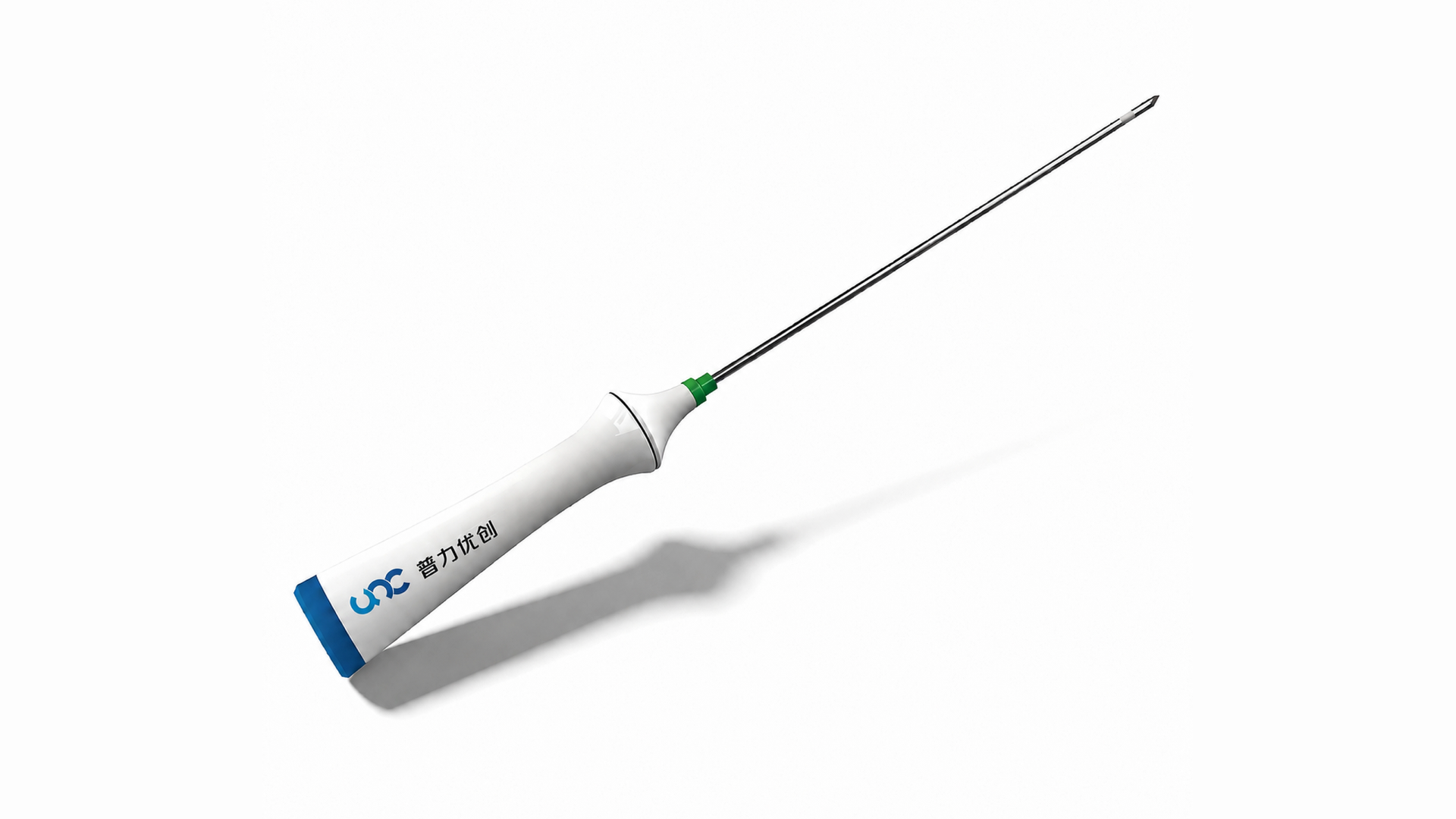

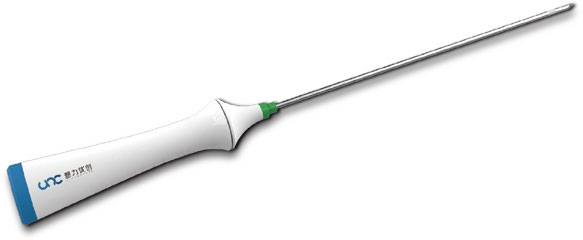

Ablation Electrode ▶

Concave forged needle tipFacilitates tissue penetration and helps reduce patient pain and bleeding.

Step-free needle-shaft designSupports smoother puncture and reduces puncture sensation and discomfort.

Depth-stop ringControls puncture depth precisely to enhance safety.

Ergonomic designImproves comfort, safety, efficiency and the user experience.

Treatment comparison

Procedure	Excisional hemorrhoidectomy / MM	Rubber-band ligation / RPH	Sclerotherapy	Stapled hemorrhoidopexy / PPH	Radiofrequency ablation / RFA
Procedure time	30–40 min	15–20 min	15–20 min	40 min	15–20 min
Intra-/post-operative bleeding	More	Less	Moderate	More	Minimal
Post-operative pain	High	High	Moderate	High	Mild
Immediate effect and healing	Slow	Moderate	Fast	Slow	Fast
Two-year recurrence rate	15%	49%	30%	20-30%	12.7%
Impact on anal-cushion function	Greater impact	Impact depends on displacement or sloughing	Impact depends on injection volume	Greater impact	Preserves anal-cushion function

Ablation-electrode advantages

☺Improved post-operative quality of life Higher patient satisfaction

♢Fewer side effects No serious adverse reactions

♕Defined treatment effect Low recurrence rate

▱Suitable for day procedures No admission required

✣Local anesthesia No incision for a gentler procedure

◷Short procedure time Typically 15–20 minutes
